MODEL

Binoculars

Straight f’=160 mm

Objective

f’=300 mm

Eyepiece

12.5x, high-eyepoint, wide angular, pupil exit distance 21mm

Diopter adjustment

-5D to + 5D

Magnification changer

5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnifications

2.8x,4x,7x,11.5x, 17x

Visual field

80 mm-12.5 mm

Interpupillary distance

55 mm to 75 mm

Focusing

Micro-range of 40mm Manual

Working distance

295 mm

ILLUMINATION

Type

Coaxial illumination by optical light-guide system

Cold light source

Halogen lamp, 15V/150W

Illumination control

3steps

Field of illumination

80 mm

Power supply

AC 110V/220V - 220W

Light intensity

80,000 LUX

Filter

Green

ARM, STAND

Type

Floor-stand type

Pantographic arm, floor stand 1040mm

Rotation angle

360°

270°

Elevation stroke

170 mm

350 mm

Height

1000-1170 mm

1000-1350 mm

Base size

600mm

Weight

20kgs

45kgs

Order NO.

Discription of Parts

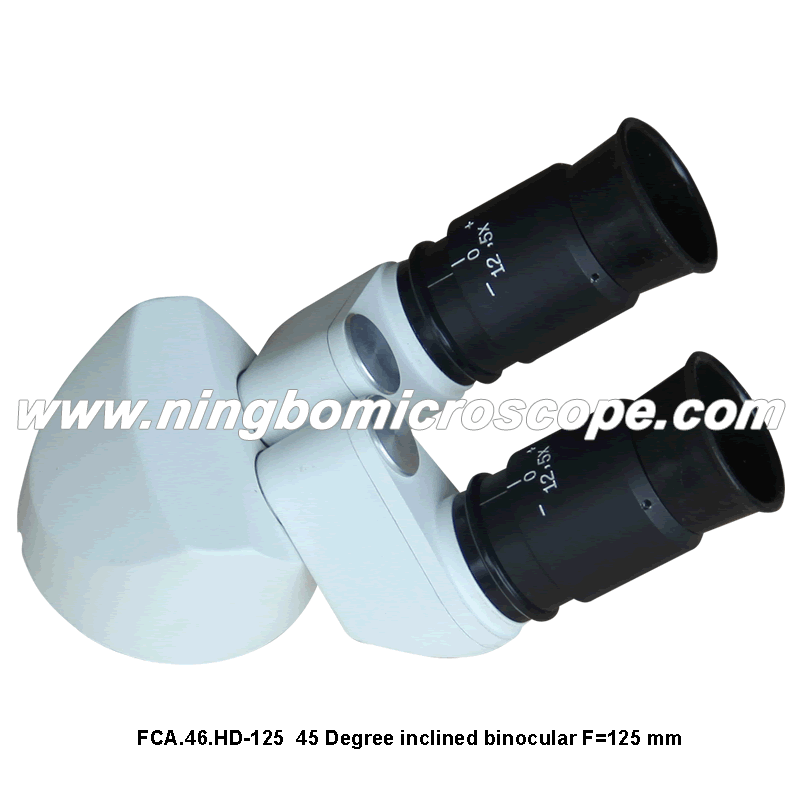

FCA.46.HD-125

45° inclined binoculars f’=125 mm

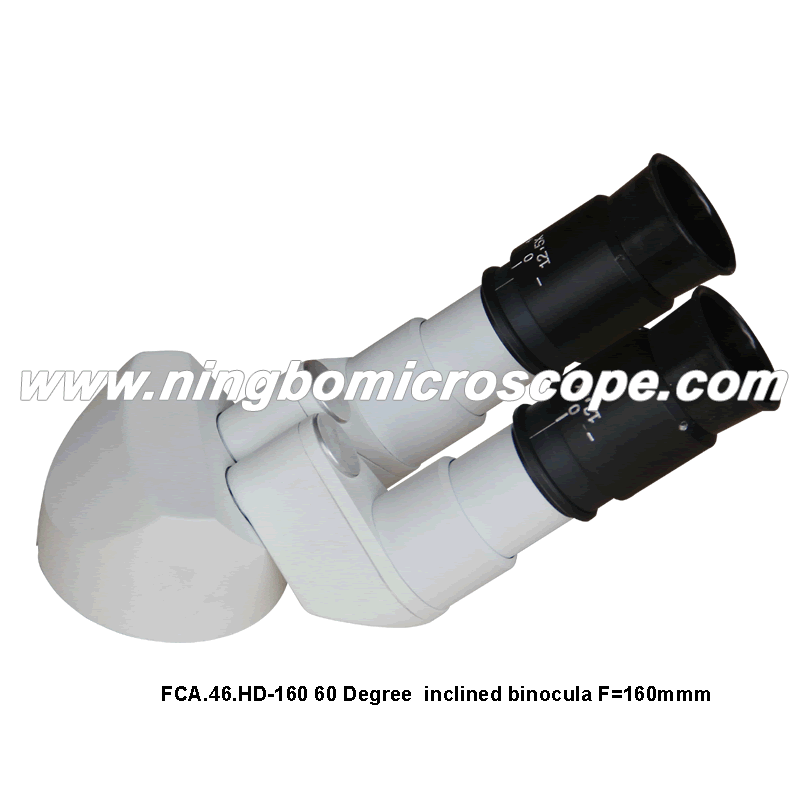

FCA.46.HD-160

60° inclined binoculars f’=160 mm

FCA.46.MON

Monocular Teaching Head

FCA.46.BMS

Beam splitte Dismountable, compatible with ZEISSmicroscope and colposcope.

FCA.46.CCD

CCD Adaptor With iris diaphragm, f’=65 mm, compatible with ZEISSmicroscope and colposcope.

OBJ.46.250

F’=250mm

OBJ.46.400

F’=,400mm
