Description and Notes |
 | |
 |
CPD.06.BM10 Compound Binocular Microscope
Advanced technology and excellent cost performance. The ideal instrument in biological, histological, pathological field and can be widely used in academic demonstration and research.
|
|
|
|
|
Specification |
| |
|
| CPD.06.BM10 Compound Binocular Microscope |
|
| Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
● |
| Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
○ |
| Eyepiece |
WF10×/18 |
● |
| WF16×/11 |
○ |
| Objective |
Achromatic objective 4×,10×,40×,100× |
● |
| Plan achromatic objective 4×,10×,40×,100× |
○ |
| Infinite plan achromatic objective 4×,10×,40×,100× |
○ |
| Nosepiece |
Quadruple nosepiece |
● |
| Focusing |

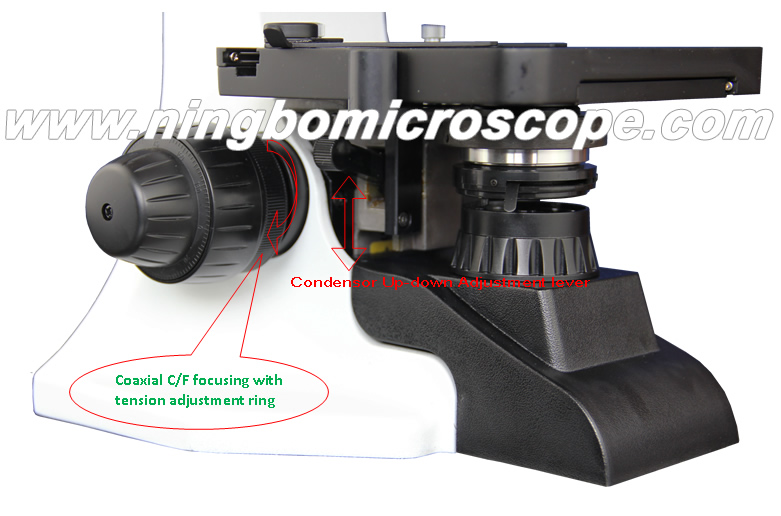

Coaxial Coarse and Fine Adjustment with Tension adjustment Ring, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
● |
| Stage |
Double Layers Mechanical Stage132×142mm Movement:75×40mm,
using low-positioned X/ Y, coaxial control knob |
● |
| Condenser |
Abbe condenser NA1.25 with aperture diaphragm |
● |
| Illumination |
S-LED Illumination，brightness adjustable |
● |

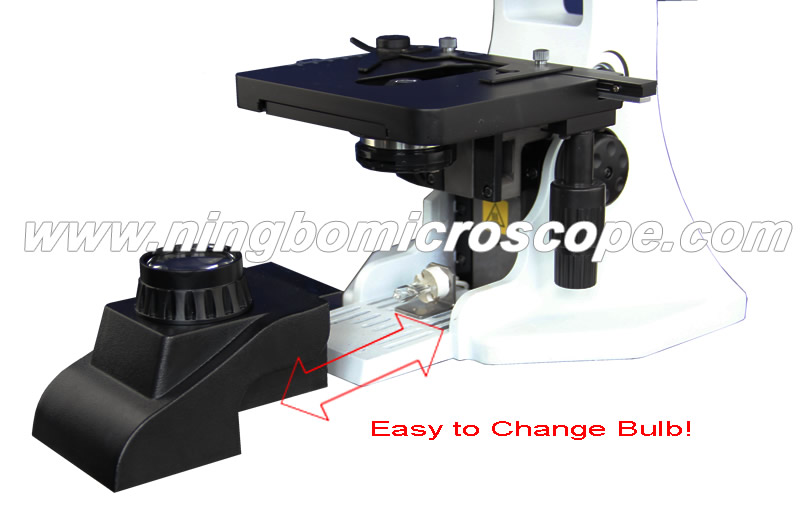

| 12V/ 20W Halogen lamp, brightness adjustable, Sliding Lamp housing makes bulb replacement easier. |
○ |
| Kohler illumination |
○ |
| Optional |
Photo attachment, video attachment, dark field condensor |
○ |
Note: ● =Standard Outfit, O=Optional |
|
|
|
|
