TMM.41.X1/X2 Toolmaker Measuring Microscope
Description and Notes

TMM.41.X1/X2 Tool Maker Measuring Microscope

Specification
Model
Eyepiece
WF15X with reticle
Objective 2x WD=67mm
Movement of Stage 50×50mm
Micrometer movement range 0-25mm 0-50mm, Digital Display
Division of Micrometer 0.002mm(0.0001″) 0.001mm(0.0001″)Digital Micrometer
Division of Plate 6′
Focusing Manual
Illumination Transmitted and Reflected light, with green fitler, Brightness adjustable
Input Power 220V/110V  50Hz/60Hz
Bulb 24V/2W
Gross weight 14kg
Optional Accessory
360° rotating stage, division 6′
Objective 5×, 10

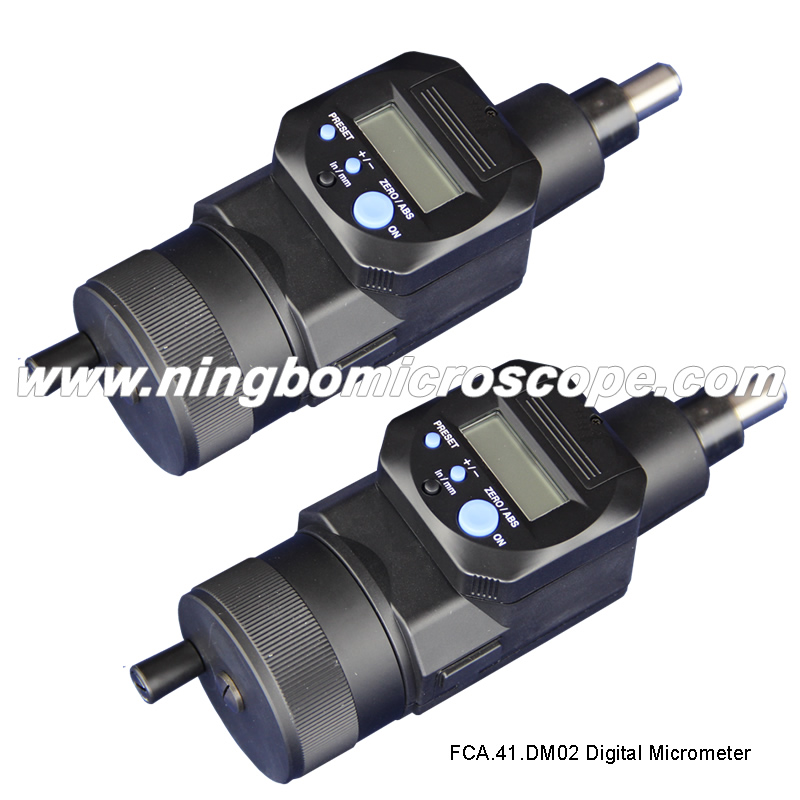

FCA.41.D02 Digital Micrometer (Made in Japan)

User's Manual
User's Manual Please clicker here to download
