CPR.06.117 Biological Comparison Microscope
Description and Notes

CPR.06.117 Biological Comparison Microscope

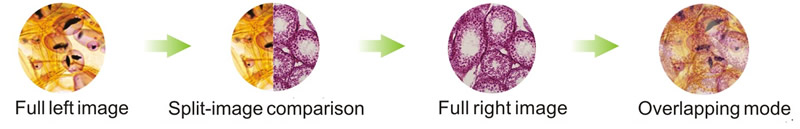

CPR.06.117 comparison microscope is a device used to analyze side-by-side specimens. It consists of two microscopes connected to an optical bridge, which gives you the choice of four different observation modes: full right image, full left image, split-image comparison and overlapping mode.
CPR.06.117 comparison microscope is designed for identifying objects structure, comparing similarities and differences between specimens, such as pathological slides, biological slides and so on. It is an ideal instrument for teaching、biological and medical field.

View Head Seidentopf Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
Seidentopf Trinocular Head, Inclined at 30°
Eyepiece WF 10X/18
Bridge Full right image, full left image, split-image comparison, superimposed mode; ± 3% magnification compensation of the right side; Magnification of relay system in the bridge 1×;
Objective Achromatic Objective 4×、10×、40×、100×
Achromatic Objective 20×、60×
Plan Achromatic Objective 4×、10×、20×、40×、
Nosepiece Quadruple Nosepiece -
Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 132×142mm/
Double Layers Mechanical Stage 140×140mm/
Focusing Coaxial Coarse & Fine Focus Adjustment System, Range 24mm, Fine Division 0.004mm
Condenser NA 1.25 Abbe Condenser with Iris Diaphragm -
NA 1.20 Abbe Condenser with Iris Diaphragm
Dark Field Condenser (Dry) NA 0.75
Dark Field Condenser (Dry) NA 1.25
Illumination S-LED Illumination, Brightness Adjustable
Halogen Lamp 6V/ 20W, Brightness Adjustable
Filter Blue Filter
Green Filter
Phase Contrast Kit Single Phase Contrast Kit
Sliding Phase Contrast Kit
Turret Phase Contrast kit
Polarization Set Simple Polarization Set
Fluorescent Attachment Epi-fluorescent Attachment
Photo Attachment
Video Adapter C Mount 1×
C Mount 0.5×

Note: ●Standard Outfit, ○Optional
