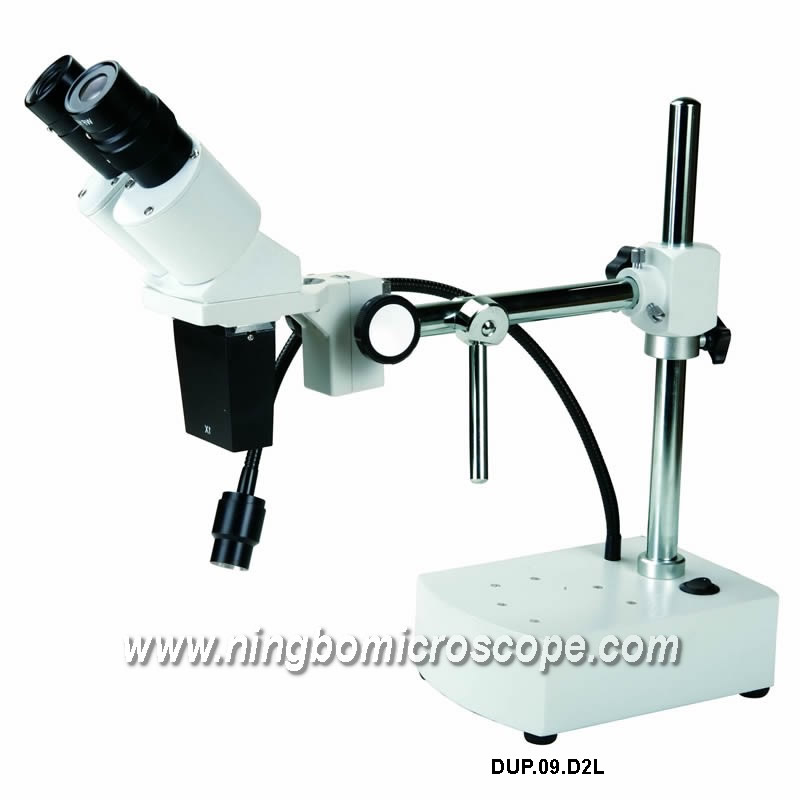

DUP.09.D2L Cellphone Repaired Microscope
Description and Notes

DUP.09.D2L Cell Phone Repaired Stereo Microscope
Standard Outfit:
1.Sharp stereo image over a wide field view
2.The left ocular-tube with diopter adjustment ?5dp.The interpupillary distance is between 55-75mm
3.Dovetail inserted style objestive with locked-in device ensures easy replacement
4.Power supply 110V/60Hz or 220V/50Hz with attached illumination AC 12V/10W or DC 6V/6W
Optional accessories:
1.Eyepiece WF5x(220mm),WF10x(20mm)WF15x(15mm),WF20x(10mm)
2.Objective 1x(230mm) , Optional : 0.5x(250mm) 2x (230mm)
3.Incandscent bulb 12V/10W
4. LED light 3W

Standard Set Specification
Standard Set DUP.09.D2L Stereo Microscope DUP.09.D2L DUP.09.D2
Head The Left Ocular-tube with diopter adjustment 5dp, the Interpupillary Distance:55-75mm
Eyepiece WF10X
Objective 1X
Working Distance 230mm
Light Source Incandescent Lamp 12V/10W 6V/6W
-
High Brightness LED Point Light 3W
-
Technical Data

Objective
Eyepiece
Working Distance
5X 10X 15X 20X
Mag. Field of view Mag. Field of view Mag. Field of view Mag. Field of view
0.5X 2.5X 40.0mm 5X 40.0mm 7.5X 30.0mm 10X 20.0mm 250mm
1X 5X 20.0mm 10X 20.0mm 15X 15mm 20X 10.0mm 230mm
2X 10X 10.0mm 20X 10.0mm 30X 7.5mm 40X 6.5mm 230mm
Optional Accessies
Eyepiece WF5X
WF15X
WF20X
Objective 0.5X
2X
