ZOM.05.S45D8 Zoom Binocular 0.7-4.5x
Description and Notes
ZOM.05.S45B Binocular Zoom Stereo
characterized by brand-new optical design, the best reproduction and true color image. It has many optional stands and attachments. It can be applied in modern biology research, semiconductor and the other science and technology industry field.

Features
--Zoom magnification 7x-45x(standard), extend total magnification: 3.5x-270x
--Zoom objective magnification 0.7X~4.5X, working distance 118mm.
--High eye point and wide field eyepiece SWH10X(Φ23mm)
--Binocular/ Trinocular head inclined 45°, rotatable 360°, diopter adjustable ±6
--Head interpupillary distance of head adjustable from 52mm to 76mm
Specification
Model
ZOM.05.S45B Binocular Zoom Stereo
Total Magnification
7x-45x(standard), extend total magnification: 3.5x-270x
Head
Binocular
Eyepiece
High eye point and wide field eyepiece SWH10x/Φ23mm
Zoom Objective
0.7x-4.5x, working distance 118mm.
Main Body
The measurement to match between support and main body: 76mm
Pole Stand
Pole stand, without light source
--Focusing range 100mm, the diameter of the center working stage is Φ95mm
--The distance from the post center to the main body center is 140mm
--The size of the round post is Φ25mm
Order Info for different packages
ZOM.05.S45B Binocular+WF10X+D1 stand
ZOM.05.S45D5 Binocular+WF10X+D5 stand

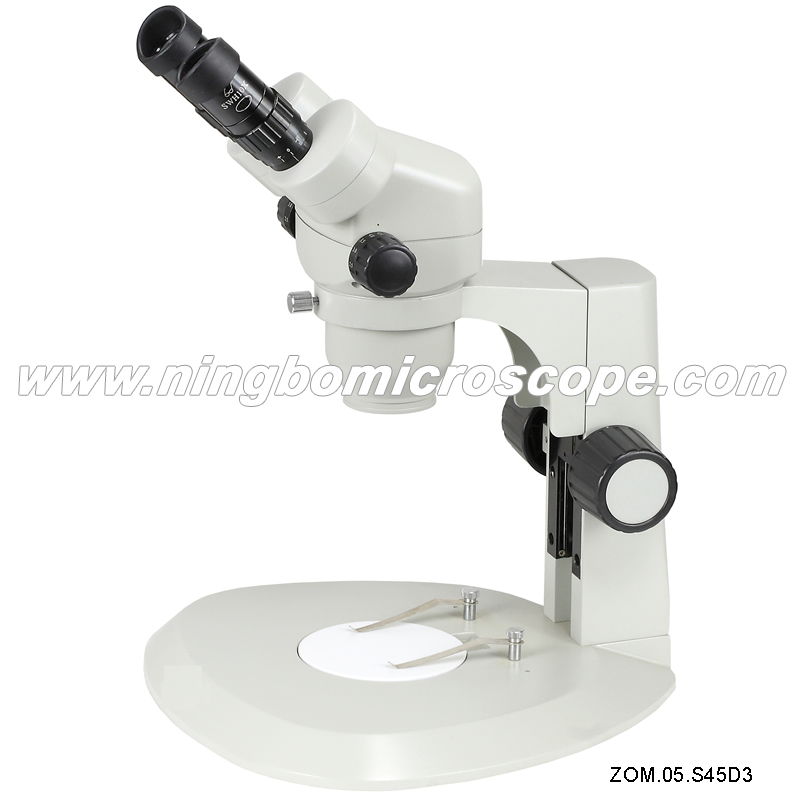

ZOM.05.S45D3 Binocular+WF10X+D3 stand
ZOM.05.S45D8 Binocular+WF10X+D8 stand
ZOM.05.S45D10 Binocular+WF10X+D10 stand
Didfferent stand More stand , plick here
Optical Parameter
Eyepiece
Objective
Main Body
0.5x
0.7x
1.5x
2.0x
Standard Magnification
0.7x-4.5x
0.35x-2.25x
0.49x-3.15x
1.05x-6.75x
1.4x-9x
5x
Total Magnification
3.5x-22.5x
1.75x-11.3x
2.45x-15.8x
5.25x-33.8x
7x-45x
FOV(mm)
Φ32.8-Φ5.1
Φ65.7-Φ10.2
Φ46.9-Φ7.3
Φ21.9-Φ3.4
Φ16.4-Φ2.6
10x
Total Magnification
7x-45x
3.5x-22.5x
4.9x-31.5x
10.5x-67.5x
14x-90x
FOV(mm)
Φ32.8-Φ5.1
Φ65.7-Φ10.2
Φ46.9-Φ7.3
Φ21.9-Φ3.4
Φ16.4-Φ2.6
15x
Total Magnification
10.5x-67.5x
5.3x-33.8x
7.4x-47.2x
15.8x-101.3x
21x-135x
FOV(mm)
Φ24.3-Φ3.8
Φ48.6-Φ7.6
Φ34.7-Φ5.4
Φ16.2-Φ2.5
Φ12.1-Φ1.9
20x
Total Magnification
14x-90x
7x-45x
9.8x-63x
21x-135x
28x-180x
FOV(mm)
Φ20-Φ3.1
Φ40-Φ6.2
Φ28.6-Φ4.4
Φ13.3-Φ2.1
Φ10-Φ1.6
30x
Total Magnification
21x-135x
10.5x-67.5x
14.7x-94.5x
31.5x-202.5x
42x-270x
FOV(mm)
Φ12.9-Φ2
Φ25.7-Φ4
Φ18.4-Φ2.9
Φ8.6-Φ1.6
Φ6.4-Φ1
Working Distance(mm)
118
195
145
50
35
Optional Accessory
Eyepiece WF15x/17mm
WF20x/14mm
WF30x/9mm
WF10x with micrometer 0.1mm
Auxiliary Objectives 0.5x, W.D.195mm
0.7x, W.D.145mm
1.5x, W.D.58mm
2.0x, W.D.35mm
