CMOS.17.U510 USB2.0 5.1MP 1/2.5 " CMOS Camera
Description and Notes

5.1M C-Mount CMOS Camera
Aptina Sensor
2.2μm x 2.2μm Pixel Size
High Sensitivity
Microsoft? Windows? XP / Vista / 7 (32 & 64 bit)
DirectShow, Twain Capture API
For Microscope with C-Mount Adaptor
Extendable to Microscope Camera with Fixed Microscope Adaptor
Extendable to Microscope Camera with Adjustable Microscope Adaptor
Extendable to Telescope Camera with Fixed Telescope Adaptor
Extendable to Telescope Camera with Adjustable Telescope Adaptor

Specification
CMOS.17.U510 CMOS Camera 5.1MP Hardware Configuration
Sensor Model APTINA MT9P001
Scan Mode Progressive
Max. Resolution 2592 x 1944 (Approx.5,040,000 Pixels)
Sensor Size 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm
Responsivity 0.53v/lux-sec(550nm)
DynamicRange 66.5dB
A/D Converter 12-bit, 8-Bit R.G.B to PC
SN Ratio 40.5dB
Spectral Range 400-650nm (with IR-filter)
Frame Size and Rate 5fps @2592 x 1944, 18fps @1280 x 960, 60fps @640 x 480 (Multiple Speed Level)
Binning 1 x 1, 2 x 2, 4 x 4
Exposure Electronic Rolling Snap(ERS),0.21~2000ms,ROI Auto & Manual
Color Rendering Technique Ultra FineTM Color Engine
White Balance One Push ROI White Balance/ Manual Temp-Tint Adjustment
Capture/Control API Native C/C++ SDK, DirectShow, Twain
Capture Mode Still Picture and Video
Software Environment
Operating System Microsoft? Windows? XP / Vista / 7 (32 & 64 Bit)
OS X (MAC OS X)
Linux (Kernel 2.6 or Above)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
USBPort:USB2.0 High-speed Port
Operating Environment
Operating Temperature -30~70℃
Storage Temperature -40~125℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply Over USB Port
Optinonal accessory
Order Number Specfifcaiton discription

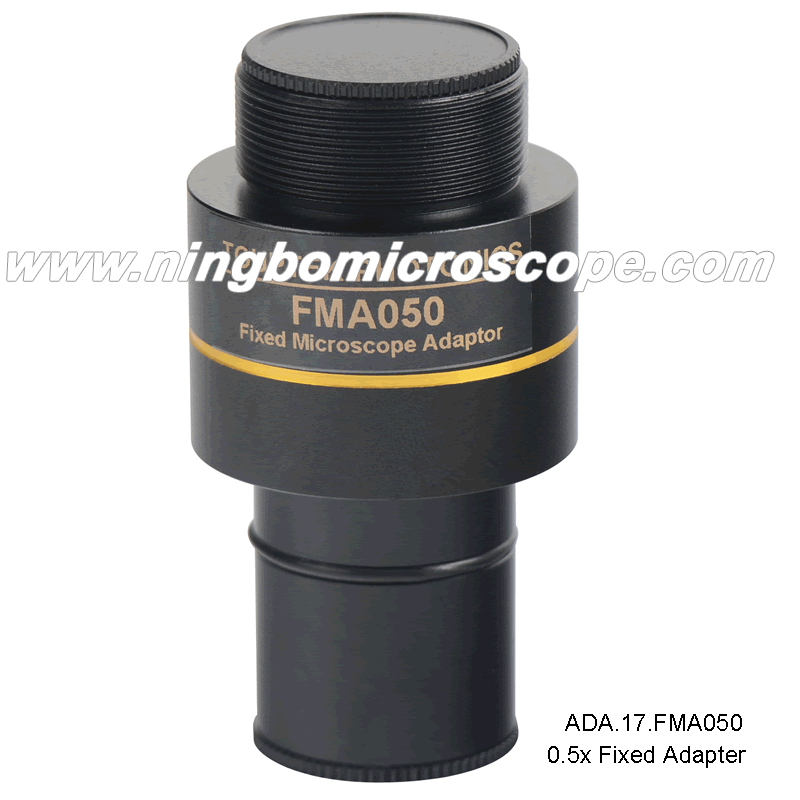

ADA.17.FMA050 0.5x Fixed Adaptor for Eyepiece Tube or Trinocular Tube(23.2mm)

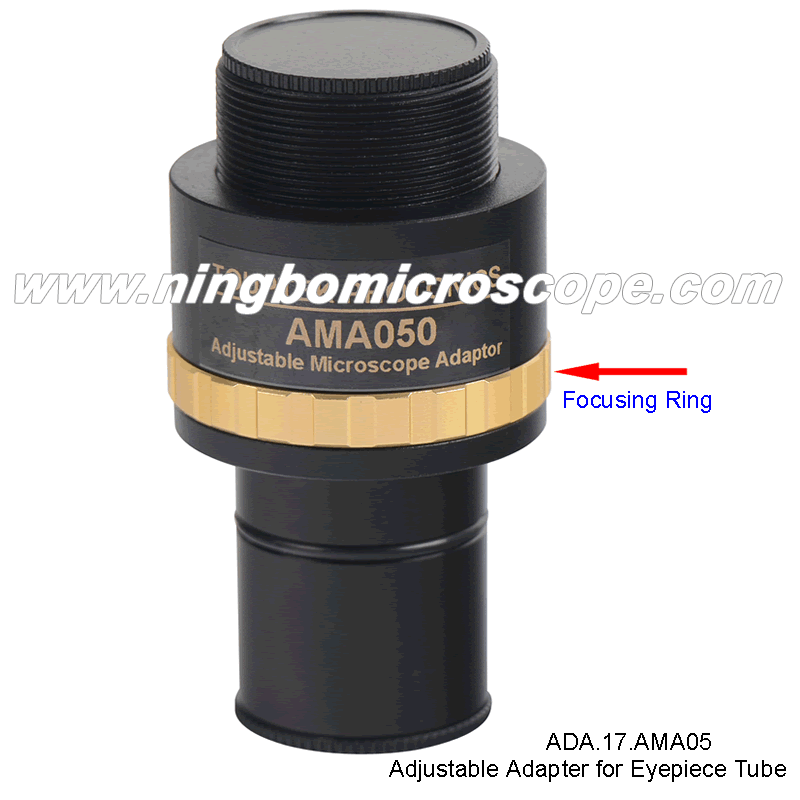

ADA.17.AMA050 0.5x Adjustable Adaptor for Eyepiece Tube or Trinocular Tube(23.2mm)
ADA.17.EDA30 23.2mm to 30mm Eyepiece Adaptor
ADA.17. EDA305 23.2mm to 30.50mm Eyepiece Adaptor
Order Guide for Other models

Order Number

Description

CMOS.17.U1400

1> 1/2.3” color Aptina CMOS sensor
2> 14 Mega Pixels
3> Aptina MT9F001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:68 X 68 X 43mm

CMOS.17.U1000

1> 1/2.3” color Aptina CMOS sensor
2> 10 Mega Pixels
3> Aptina MT9J001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U900

1> 1/2.4” color Aptina CMOS sensor
2> 9 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U800

1> 1/2.5” color Aptina CMOS sensor
2> 8 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U310

1> 1/2” color Aptina CMOS sensor
2> 3.2 Mega Pixels
3> Aptina MT9T001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U200

1> 1/2” color Aptina CMOS sensor
2> 2.0 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U130

1> 1/3” color Aptina CMOS sensor
2> 1.3 Mega Pixels
3> Aptina MT9M111 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm

CMOS.17.U35

1> 1/4” color Aptina CMOS sensor
2> 0.3 Mega Pixels
3> Aptina MT9V011 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm
