ZOM.06.S818 Ultra Wide Zoom Range Stereo microscope 0.75-13.5X
Description and Notes
ZOM.06.S818 Ultra Wide Zoom Range Stereo microscope 0.75-13.5X
This scope has a parallel optical path into which various intermediate tubes, including a beam splitter, coaxialepiscopicilluminator, EPI-fluorescence attachment, teaching head, drawing tube and eye-level riser, can be added
The Plan Apo series features higher NA, wider field of view ad superior flatness and color aberration correction. These objective lenses can be seamlessly switched because all magnifications have the same parfocal distance. The bayonet mount design allows lenses to be safely and easily removed.
Specification
Item Specification
Optical System Parallel optical zoom system
●
●
Eyepiece WF10x/23， Diopter Adjustable+-5
●
●
WF15x/16， Diopter Adjustable+-5
Optional
Optional
WF20x/12， Diopter Adjustable+-5
Optional
Optional
Viewing Head Trinocular Viewing Head, Inclined at 20°Degree，Interpupillary 55-75mm,Splitting ratio 100/0, 0/100
●
-
0-30 degree Tilting Trinocular Head . Interpupillary 55-75mm,Splitting ratio 100/0,0/100
-
●
Zoom Range 0.75X~13.5X
●
●
Zoom Ratio 1:18
●
●
Focusing Mode Manual : 60-99mm
●
-
Motorized Focusing : 110mm
-
●
Focusing Range 60mm-99mm
●
-
110mm
-
●
Objective Plan Apo 0.5x NA0.075 WD=71mm
Optional
Optional
PLAN APO 1X N.A.:0.15, WD=60mm
●
●
Plan Apo 1.6x NA0.24 WD=24mmm
Optional
Optional
Plan Apo 2x NA0.3 WD=20mm
Optional
Optional

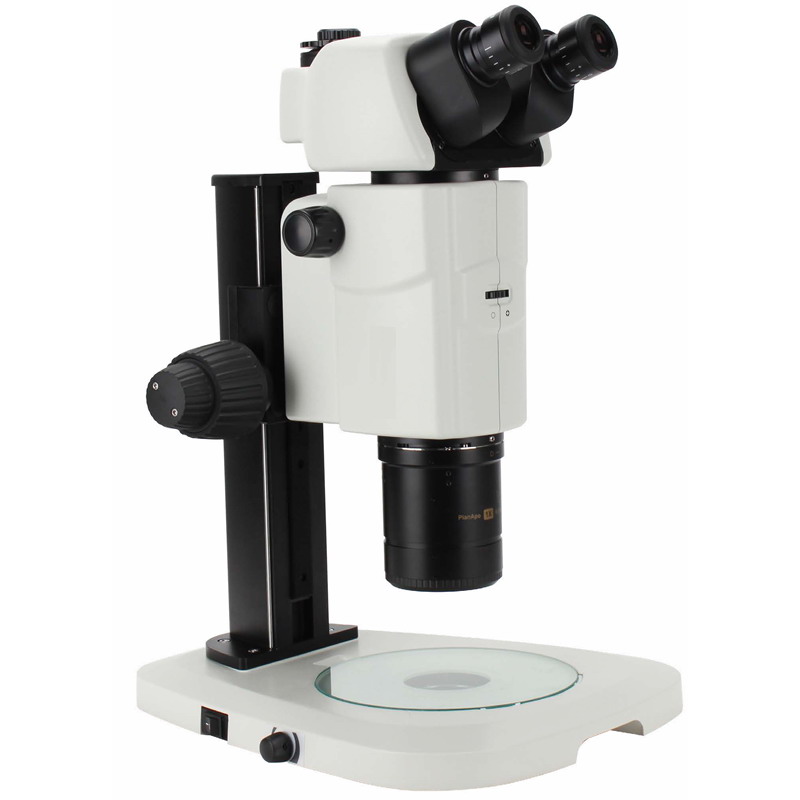

Stand Manual Focusing Transimitted LED Light Stand, Coaxial Coarse and Fine Focusing Track Stand with Built-in OIC Bottom LED Light
●
-

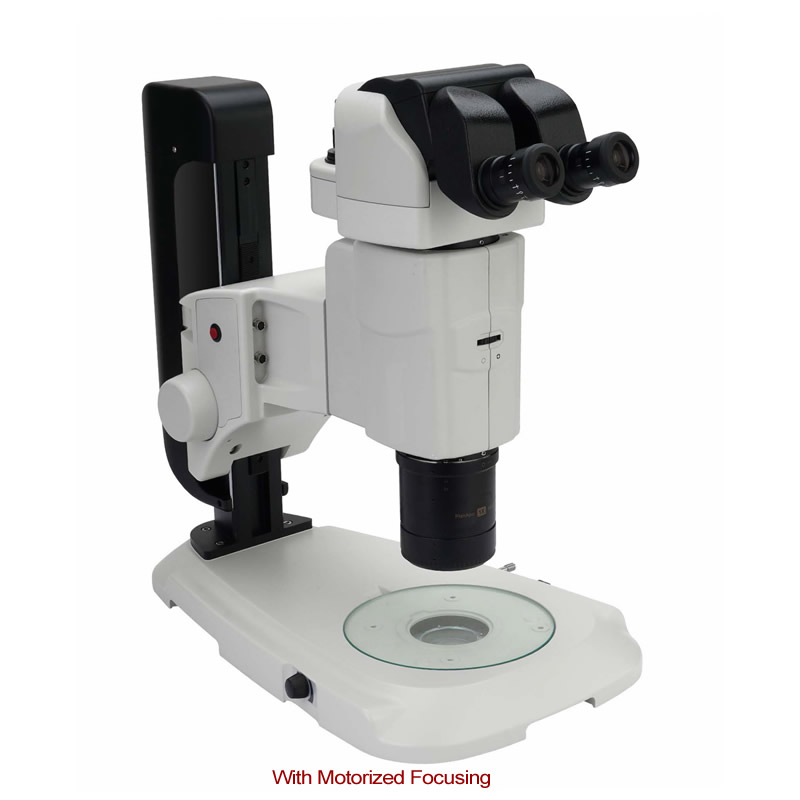

Motorized Focusing Transimitted Track Stand with Built-in OIC Bottom LED Light, with remote controller
-
●
CCD Adapter 1x C-mount
○
○
Coaxial Illumination Kit Coaxial Ligt Cube
○
○
20W LED Could Light Source
○
○
Soft Double Pipe Fiber
○
○

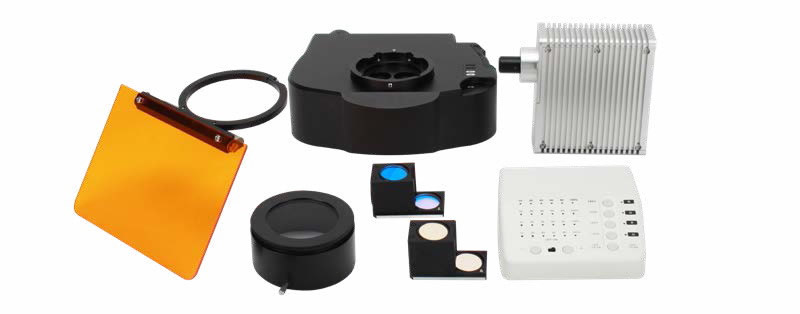

Fluorscent EPI Kit 6 Holes Turret Fluorescent Filter Cube,with Shading Plate
○
○
4 Bands LED FL Light Sources, With Controller
○
○
1/4λ Plate
○
○
Bright Field Cube
○
○
Fluorescent Cube B, BP460-490,DM500，BA520
○
○
Fluorescent Cube G, BP510-550,DM570，BA590
○
○
Fluorescent Cube U, BP330-385,DM400，BA420
○
○
Fluorescent Cube V, BP400-410,DM455，BA455
○
○
Fluorescent Cube FITC, BP460-495,DM505，BA510-550
○
○
Fluorescent Cube DAPI, BP360-390,DM415，BA435-485
○
○
Fluorescent Cube TRITC, BP528-553,DM565，BA578-633
○
○
