VID.25.N20 Series Metallurgical Video Microscope
Main Features:
--1X Infinity Optical System
--Focusable C-mount. Max :2/3" Sensor Size
--Can attach Built-in Coaxial LED Reflective Light.
--Various LWD Metallurgical Objective for Option
--Long working distance APO objectives for Option
--Installation Diam: 45 mm, tube size 40 mm (can be customized according to customer requirements)
--High Brighness 3W LED coaxial light
|
|
|
|
|
Order Guide |
|
|
|
| Order Number |
Description |
| VID.25.N20 |
1x Main Body |
|
1x Main Body+Triple Nosepiece |
|
1x Main Body+Coaxial Light Kit |
|
1x Main Body+Coaxial Light Kit+Triple Nosepiece |
|
3W High Brightness LED Spot Light , Brightness Adjustable, Inserting Diameter: 11mm |
|
|
|
|

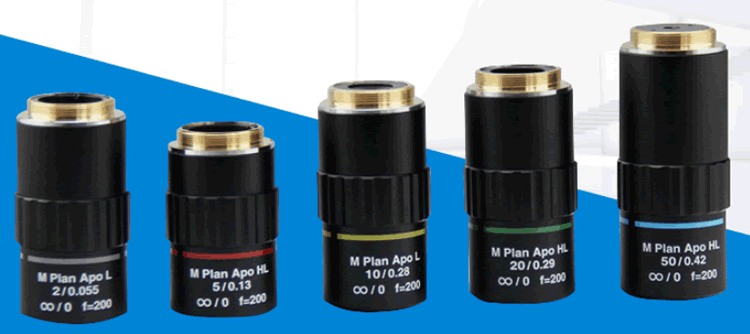

Optional Infinity Plan Apochromatic Industry Detective Objectives (APO),M26 Thread
|
|
|
|
| Model No. |
Specification |
Mag. |
N.A. |
W.D.(mm) |
Focal length(mm) |
Resolution
（μm） |
Depth of
Focus±Δp(μm) |
| APO2X |
2X |
0.055 |
34.6 |
100 |
5 |
91 |
| APO3.5X |
3.5X |
0.1 |
40.93 |
57.1 |
2.75 |
27.5 |
| APO5X |
5X |
0.13 |
44.5 |
40 |
2 |
16.3 |
| APO10X |
10X |
0.28 |
34 |
20 |
1 |
3.5 |
| APO20X |
20X |
0.29 |
31 |
10 |
1 |
3.3 |
| APO20X-B |
20X |
0.42 |
20.68 |
10 |
0.7 |
1.9 |
| APO50X |
50X |
0.42 |
20.1 |
4 |
0.7 |
1.6 |
| APO50X-B |
50X |
0.55 |
13.48 |
4 |
0.5 |
0.9 |
APO100X |
100X |
0.55 |
12.6 |
2 |
0.5 |
0.91 |
|
|
|
|
Optional LWD Infinity Plan Metallurgical Objectives
|
|
|
|
| Item |
Mag |
NA |
WD(mm) |
Focus length
(mm) |
Resolution
（μm） |
Depth of Focus±Δp(μm) |
| LWD Infinity Plan Metallurgical Objectives |
PLL5X |
0.12 |
26.1 |
40.00 |
2.7958 |
77.431 |
PLL10X |
0.25 |
5 |
20.00 |
1.1183 |
14.722 |
PLL10X |
0.25 |
20.2 |
20.00 |
1.342 |
18.4 |
PLL20X |
0.4 |
8.8 |
10.00 |
0.8388 |
6.094 |
PLL40X |
0.6 |
3.98 |
5.00 |
0.5592 |
2.222 |
PLL50X |
0.7 |
3.68 |
4.00 |
0.4793 |
1.561 |
PLL60X |
0.7 |
2.08 |
3.33 |
0.4473 |
1.267 |
PLL80X |
0.8 |
1.28 |
2.50 |
0.4194 |
0.977 |
PLL100X |
0.85 |
0.4 |
2.00 |
0.3947 |
0.792 |
|
|
|
|
