Description and Notes |
 | |
 |

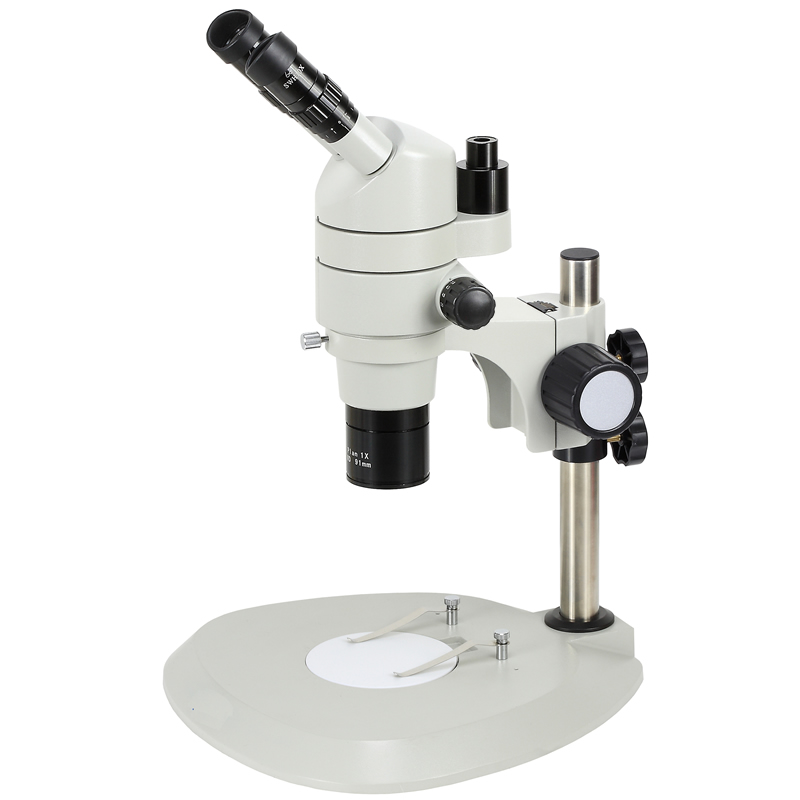

ZOM.05.S850D1 Parallel Zoom Stereo Microscope, characterized by Galileo optical system. Magnification range of zoom body is 0.8x-5.0x, magnification from high to low non-flash in focusing course, large depth of field, long working distance, has many kinds of attachments. It can be satisfied the demands of checking-up and analysis in modern biology, medicine, environment, farming, police, micro-electronics, semiconductors etc..
Features
--Parallel zoom optical system 0.8x-5.0x, working distance 91mm.
--Zoom magnification 8x-50x(standard), extend Mag.: 2x-225x
--Plan distortion-free objective 1x
--High eye point and wide field eyepiece SWH10X(Φ23mm)
--Binocular/ Trinocular head inclined 45°, rotatable 360°, diopter adjustable ±6
--Head interpupillary distance of head adjustable from 50mm to 76mm
|
|
|
|
|
Standard Set Specification |
| |
|
|
Model |
|
|
|
Mag. |
8x-50x(standard), extend Mag.: 2x-225x |
|
Head |
Binocular |
Trinocular |
|
Eyepiece |
High eye point and wide field eyepiece SWH10x/Φ23mm |
|
Zoom Objective |
Parallel 0.8x-5.0x, working distance 118mm. |
| Standard Objective |
Plan distortion-free objective 1x |
|
Main Body |
The measurement to match between support and main body: 76mm |
|
|

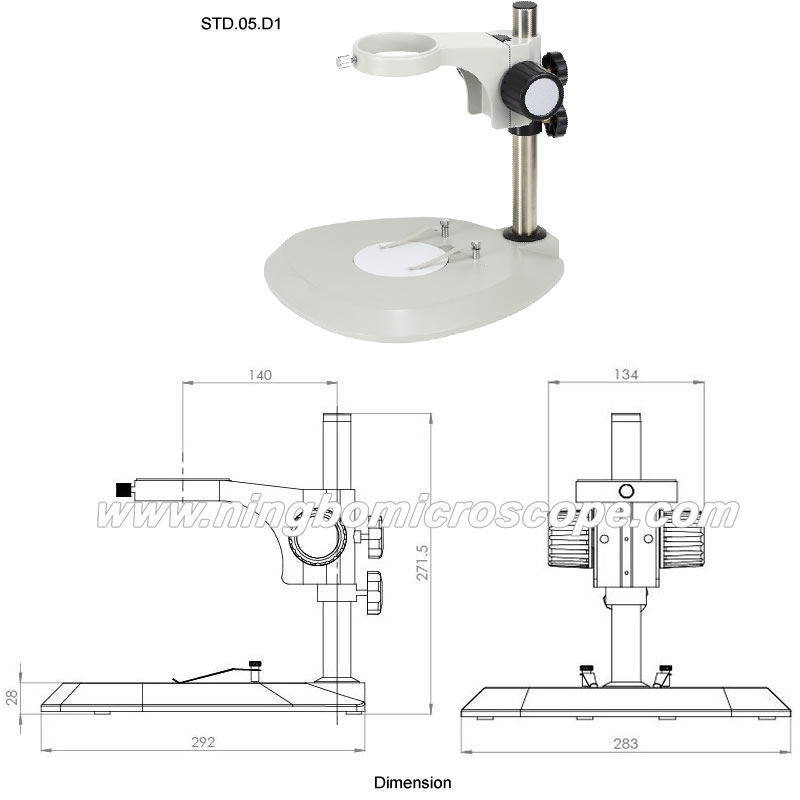

STD.05.D1 Stand
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm
--Stand Size, please click here
| |
|
|
|
|
Optical System Technical Data Sheet |
| |
|
|
Eyepiece |
Objective |
0.5x |
0.7x |
1.0x |
1.5x |
|
Standard Magnification |
4x-25x |
5.6x-35x |
8x-50x |
12x-75x |
|
5x |
Mag. |
2x-12.5x |
2.8x-17.5x |
4x-25x |
6x-37.5x |
|
FOV) |
Φ55-8.8 |
Φ39.3-Φ6.3 |
Φ27.5-Φ4.4 |
Φ18.33-Φ2.93 |
|
10x |
Mag. |
4x-25x |
5.6x-35x |
8x-50x |
12x-75x |
|
FOV) |
Φ55-8.8 |
Φ39.3-Φ6.3 |
Φ27.5-Φ4.4 |
Φ18.33-Φ2.93 |
|
15x |
Mag. |
6x-37.5x |
8.4x-52.5x |
12x-75x |
18x-112.5x |
|
FOV) |
Φ42.5-Φ6.8 |
Φ30.36-Φ4.86 |
Φ21.25-Φ3.4 |
Φ14.17-Φ2.27 |
|
20x |
Mag. |
8x-50x |
11.2x-70x |
16x-110x |
24x-150x |
|
FOV) |
Φ35-Φ5.6 |
Φ25-Φ4 |
Φ17.5-Φ2.8 |
Φ11.67-Φ1.87 |
|
30x |
Mag. |
12x-75x |
16.8x-105x |
24x-150x |
36x-225x |
|
FOV) |
Φ22.5-Φ3.6 |
Φ16.1-Φ2.57 |
Φ11.25-Φ1.8 |
Φ7.5-Φ1.2 |
|
Working Distance(mm) |
186 |
135 |
91 |
40 | |
|
|
|
|
